Split-Skid Hydrogen Refuelling Equipment Fed by Tube Trailer

Product Introduction

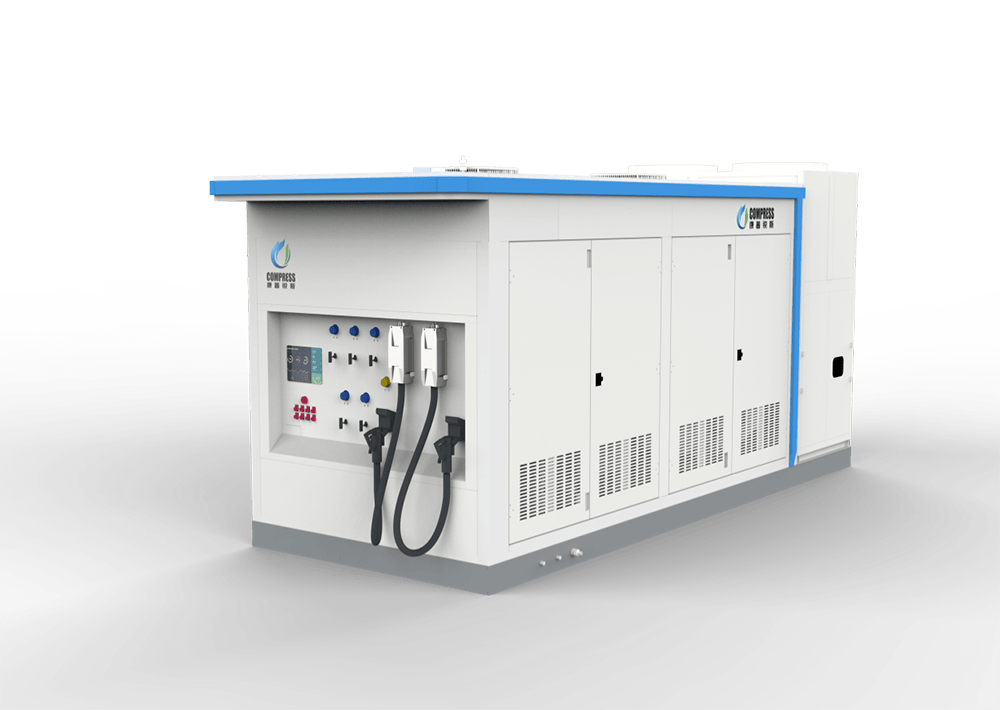

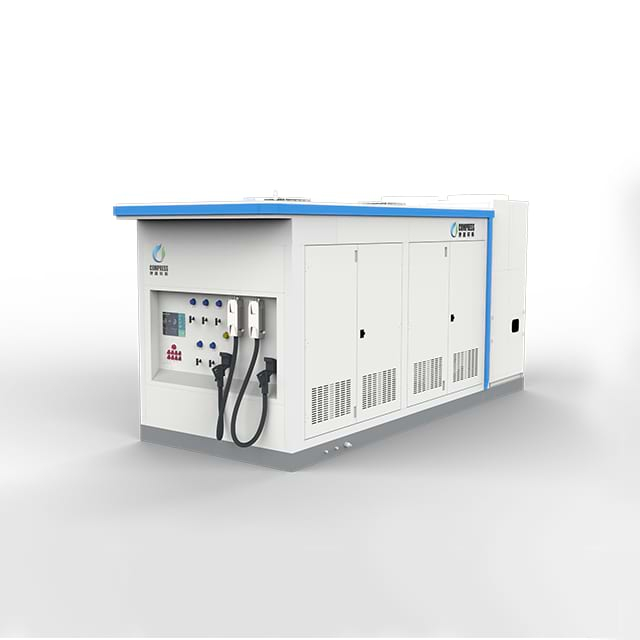

The 35 MPa fully‑integrated skid‑mounted hydrogen refueling station developed by COMPRESS Energy integrates core functions including hydrogen offloading, compression, refueling, venting and chiller cooling. Built with the latest‑generation high‑performance compression cylinder technology for innovative functional integration, the equipment enables fast deployment and commissioning to meet customer project timelines. Compared with conventional station construction, it cuts land footprint by 50 % and project lead time by 80 %. It delivers a refueling power consumption below 1.3 kWh/kg with a tube‑trailer offloading pressure as low as 3.5 MPa, and supports quick startup for hydrogen refueling. These advantages greatly enhance the flexibility and practicality of hydrogen refueling stations, delivering efficient and dependable hydrogen refueling solutions for clients. Its offloading pressure of 3.5 MPa is far lower than the typical market average of 7‑8 MPa. Multiple standard models with a hydrogen refueling capacity ranging from 500 kg to 1500 kg per 12‑hour shift are available to accommodate a wide range of customer‑specific operating conditions.
